Fiber Splicing 101: How We Connect the Internet

Fiber optic cable carries data as pulses of light. When you need to join two fiber cables together — whether at a distribution point, a splice enclosure on a pole, or inside a data center — you cannot just tape them together. The connection has to be clean enough that light passes through with minimal loss. That is what splicing is.

Two Types of Fiber Splices

Mechanical Splices

A mechanical splice uses a small alignment fixture to hold two fiber ends in contact, usually with index-matching gel between them to reduce reflections. They are fast to make but introduce higher loss than fusion splices (typically 0.5 dB or more) and are less durable. Mostly used for temporary repairs or low-budget installations.

Fusion Splices

A fusion splicer uses a precisely controlled electric arc to melt and permanently fuse two fiber ends together. The glass literally becomes one piece. Loss figures under 0.05 dB are routine. This is the industry standard for any permanent, performance-critical splice.

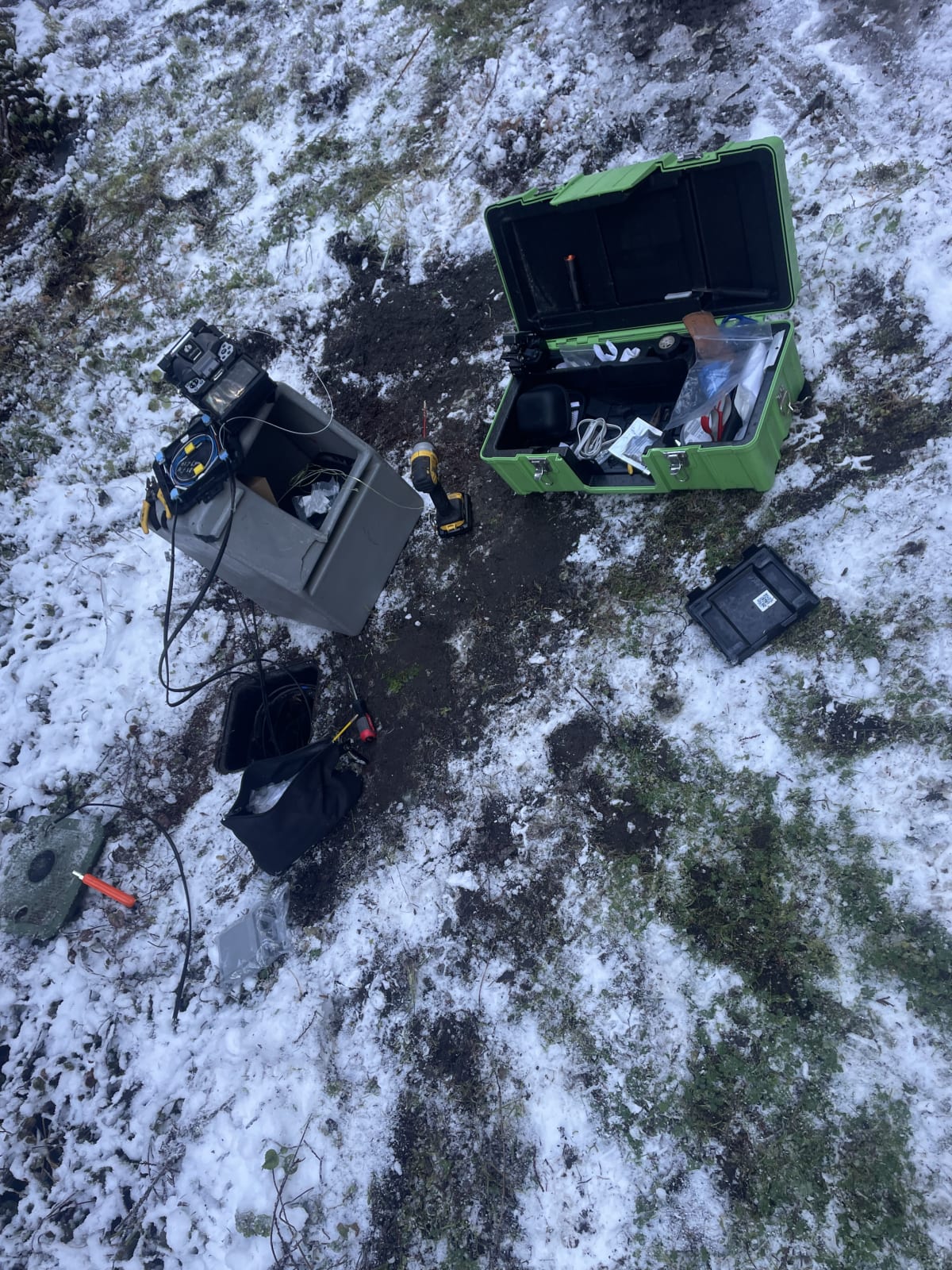

The Fusion Splicing Process

Step 1: Strip the Fiber

Remove the buffer coating (typically 250 µm colored coating) to expose the bare glass cladding. This is done with a fiber stripper — a precision tool that removes the coating without nicking the glass. Any nick in the glass means a weak point that will fail.

Step 2: Clean

Clean the bare fiber with isopropyl alcohol (99%+ pure) on a lint-free wipe. Contaminants on the fiber end will cause a bad cleave and a bad splice. This step sounds trivial; it is not.

Step 3: Cleave

A fiber cleaver scores and snaps the fiber to create a flat, perpendicular end face. The quality of the cleave determines the quality of the splice. A good cleaver produces a mirror-flat end face consistently. Cleave angle error beyond about 1 degree will cause excess loss.

Step 4: Splice

Place the two prepared fiber ends into the splicer's V-grooves. The splicer aligns them using a camera system (most modern splicers do this automatically), performs a prefusion arc to clean the fiber ends, then fires the main arc to fuse the fibers together.

Step 5: Splice Protection

Slide a heat shrink sleeve (splice protector) over the splice and place it in the splicer's heater. The sleeve shrinks down over a stainless steel rod that supports the splice mechanically. This protects the bare glass from bending, moisture, and physical damage.

Step 6: OTDR Verification

Load the splice into the enclosure and test with an OTDR. A good splice appears as a small step down in the trace. Loss values are confirmed from both directions (bidirectional averaging gives the most accurate reading). High loss splices get redone.

Understanding Optical Loss

Every component in a fiber link introduces loss — measured in decibels (dB). The total allowable loss in a link (the "loss budget") is determined by the optical power of the transmitter and the sensitivity of the receiver.

Typical contributors: | Component | Typical Loss | |---|---| | Fusion splice | 0.02 – 0.10 dB | | Mechanical splice | 0.5 – 1.0 dB | | Connector (SC/LC) | 0.1 – 0.5 dB | | Per km of SM fiber | 0.2 – 0.4 dB | | Bend (tight radius) | Variable — can be severe |

In a typical FTTH PON network, the total link loss budget is around 28 dB (for GPON). A well-built network with good splices and connectors should use well under that.

Single-Mode vs. Multi-Mode

Single-mode fiber (SMF) — 9 µm core. Carries one mode of light. Used for long distances (telco, backbone, FTTH). The fiber you are splicing for a carrier network is almost always single-mode.

Multi-mode fiber (MMF) — 50 or 62.5 µm core. Carries multiple light modes. Higher bandwidth over short distances. Used inside data centers and campus networks.

Splicing them together is a bad idea — mode field mismatch causes high loss. Always verify fiber type before splicing.

Common Mistakes

Contamination — skipping or rushing the cleaning step. One fingerprint on a fiber end before cleaving = redoing the splice.

Bad cleave — dull or dirty cleaver blade. A cleaver blade has a rated number of cleaves. When it starts producing angled or chipped ends, change the blade.

Bend radius violations — fiber bent too tightly in the enclosure. Single-mode fiber is surprisingly intolerant of tight bends. Every bend that is too tight increases loss and can eventually crack the fiber.

Not protecting the splice immediately — bare glass left exposed even briefly is a risk. Mount the sleeve while the glass is still controlled.

Why It Matters

Every fusion splice in a fiber network is a permanent connection carrying real traffic. A poor splice degrades signal quality for every user on that circuit. Getting it right — stripping clean, cleaving flat, verifying with OTDR — is the difference between a network that performs and one that generates trouble tickets.

The precision required is one of the things I respect about this trade. The margin for sloppiness is small and the tools will tell you exactly how you did.
